Diamond Core Drill Control Panels

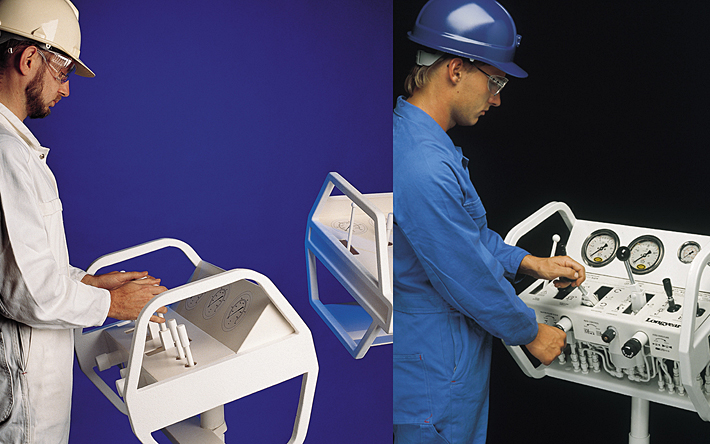

Our initial redesign of the LM45 Diamond Core Drill control panel (image 1) improved ergonomics, simplified operation and reduced operator fatigue. The unit was light, compact, robust, featured a tight control envelope and clear control labelling.

The new generation panel below significantly reduces the assembly complexity by using a sandwich manifold with direct hose connections and a stainless steel spine. The panel is finished with a rotationally cast shell that reduces weight, fabrication cost, does not rust and requires no painting.




Services

Conceptual Design | Product Analysis | Prototypes | Detail Design | 3D Modelling | Production Support

Location

Adelaide, South Australia
